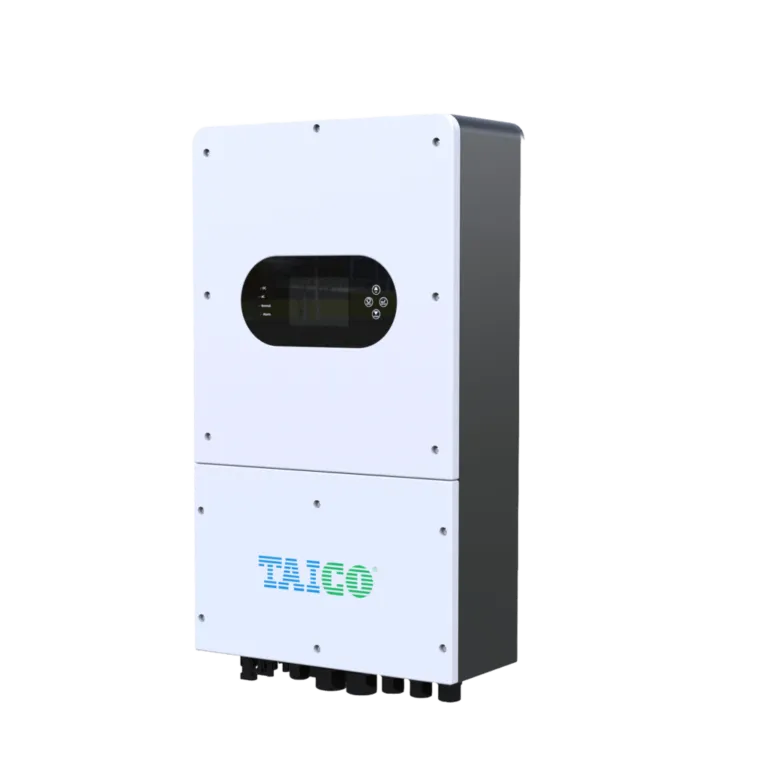

The TAICO 6KW HYP4860S100-H Hybrid Inverter is built to deliver maximum power efficiency and versatile operation for both on-grid and off-grid systems. It’s designed to intelligently balance power between solar, battery, and grid sources, ensuring continuous, stable electricity supply for residential, commercial, and industrial use.

This model features dual MPPT inputs and supports up to 500Vdc PV input, providing excellent solar energy tracking and harvesting even under variable sunlight. Its 100A MPPT controller ensures rapid charging and extended battery lifespan.

The inverter outputs a pure sine wave, protecting sensitive appliances like computers, refrigerators, and medical equipment. Its LCD control panel offers intuitive system monitoring and diagnostics, while the intelligent fan cooling system maintains optimal performance.

Built to withstand the toughest environments, the HYP4860S100-H includes multiple safety protections such as overload, short-circuit, reverse polarity, and overheating. Its hybrid flexibility makes it perfect for locations that experience grid instability or want to reduce dependence on the grid entirely.

Technical Specifications:

• Rated Power: 6000W

• System Voltage: 48V DC

• PV Input Voltage: 500Vdc

• Charging Current: 100A MPPT

• Waveform: Pure Sine Wave

• Efficiency: ≥98%

• MPPT Inputs: Dual

• Display: LCD with status indicators

• Cooling: Intelligent fan system

• Protection: Overload, over-temp, reverse polarity, short circuit

• Communication: RS485 / CAN / WiFi (optional)

• Operation Modes: Solar first / Grid assist / Battery priority

• Installation: Wall-mount

• Applications: Homes, commercial setups, hybrid solar installations
