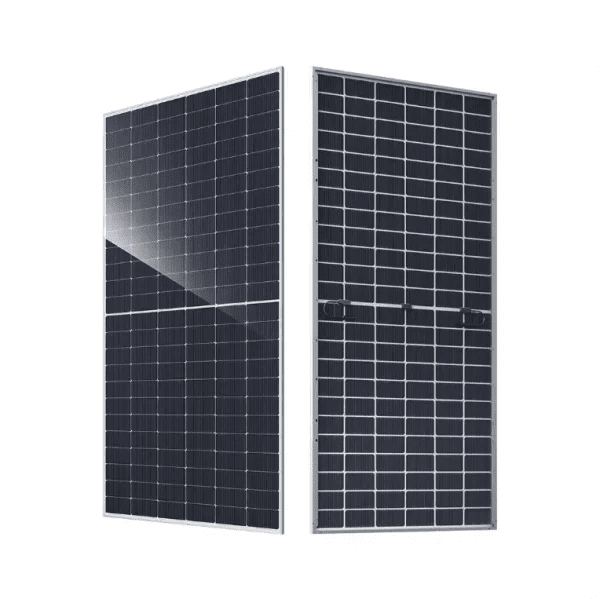

The Canadian 590W Bi-Facial Monocrystalline Solar Panel is designed for high-efficiency solar energy generation. With bifacial technology, this module captures sunlight from both the front and rear sides, delivering more energy per square meter and maximizing returns on your investment.

Engineered for superior performance in all environments, this module is suitable for residential, commercial, and utility-scale projects.

Its bifacial capability allows it to harvest reflected light from surfaces like concrete, sand, or rooftops, increasing energy yield by up to 20% compared to monofacial panels.

Whether installed on rooftops or ground-mounted structures, the 590W bifacial panel ensures consistent output with reduced degradation over time.

The panel’s monocrystalline N-Type technology provides minimal light-induced degradation (LID), better temperature coefficient, and higher efficiency under low-light conditions, ensuring a long lifespan and a lower levelized cost of electricity (LCOE).

• Maximum Power (Pmax): 595W

• Maximum Power Voltage (Vmp): 43.59V

• Maximum Power Current (Imp): 14.74A

• Open Circuit Voltage (Voc): 52.20V

• Short Circuit Current (Isc): 15.57A

• Maximum System Voltage: 1500VDC

• Cell Technology: N-Type Monocrystalline, 144 half-cells (6 × 24 configuration), 16-busbar (MBB)

• Module Dimensions: 2278 × 1134 × 30 mm

• Module Efficiency: Approximately 22.5% (up to 23.0%)

• Weight: Approximately 31.8 kg

• Front/Back Glass: 2.0 mm tempered glass on both sides

• Frame: Anodized aluminum alloy (silver)

• Junction Box: IP68 rated with 3 bypass diodes

• Operating Temperature Range: –40°C to +85°C

• Temperature Coefficient (Pmax): –0.29%/°C
